Refractory Castables

Choosing the Right Refractory Castable for a Monolithic Lining

Refractory castables allow engineers, furnace builders and maintenance teams to form joint-free or reduced-joint high-temperature linings around complex shapes that would be difficult to construct entirely from refractory brick. Different formulations perform different functions: a dense castable may form the working hot face, a low cement grade may provide greater strength or resistance to severe process conditions, while an insulating castable can reduce heat transfer and lining mass. Selection should therefore begin with the required duty of each refractory zone rather than temperature rating alone.

Refractory Castable Selection Guide

Product / Grade	Refractory type	Temperature capability	Typical duty
1200AR	Abrasion-resistant dense castable	Up to 1200°C	Wear-resistant furnace, boiler, incinerator, cyclone and ash-handling areas
1400STD	Conventional dense castable	Up to 1400°C	General monolithic refractory construction, boiler arches, kiln cars and furnace sections
1550STD	High-alumina dense castable	Up to 1550°C	Foundry, steel and boiler components requiring increased mechanical and refractory performance
1600STD-F	Dense refractory concrete	Up to 1600°C	Boiler linings, boiler doors, burner blocks, incinerators and high-temperature repairs
1700STD	High-temperature dense castable	Up to 1700°C	Industrial furnaces, foundry equipment and small crucible furnace construction
1800STD	Very high alumina dense castable	Up to approximately 1850°C	Severe high-temperature process and non-ferrous metallurgical applications
1400LCC	Low cement castable	Up to 1400°C	Monolithic linings and precast refractory shapes
1400LCC-AL	Non-wetting low cement castable	Up to 1400°C	Molten aluminium holding furnaces, launders and transfer systems
1600LCC	Low cement castable	Up to 1600°C	Burner quarls, ladle linings, furnace walls and precast refractory components
1700LCC	High-temperature low cement castable	Up to 1700°C	High-strength industrial refractory construction
1700LCC-P	High-alumina low cement castable	Up to 1700°C	Steel ladles, reheat furnaces and severe metallurgical service
1800LCC	Very high alumina low cement castable	Up to 1800°C	High-performance steel and non-ferrous metallurgical applications
1200INS	Lightweight insulating castable	Up to 1200°C	Backup insulation in boilers, flues, stacks and thermal equipment
1250INS	Insulating castable	Up to 1250°C	Kiln-car bases, sub-floor insulation and thermally efficient refractory structures
1300INS	Lightweight insulating refractory castable	Up to 1300°C	Furnaces, kilns, ovens and backup insulation behind dense castables
1400INS	Higher-temperature insulating castable	Up to 1400°C	Insulating refractory construction requiring increased temperature capability
VITCAS Refractory Gunning Mixes	Pneumatically installed monolithic refractory	Grade dependent	Large areas, vertical surfaces, complex geometry and maintenance installation
Refractory Reinforcing Stainless Steel Needles	Castable reinforcement	Application dependent	Compatible castable sections requiring additional toughness and crack control

What Is Castable Refractory?

Castable refractory is a monolithic heat-resistant material manufactured from refractory aggregates, hydraulic or chemical bonding systems and carefully selected additives. It is normally supplied as a dry mix and prepared with a controlled quantity of water before installation.

Depending on formulation and installation method, refractory castables can be poured, vibration cast, tamped, trowelled, formed into precast components or applied using specialist gunning equipment.

Unlike refractory brick construction, monolithic castables allow complex shapes to be produced with fewer joints. This is particularly useful around burner blocks, doors, arches, furnace shells, irregular transitions, penetrations and other areas where conventional brick geometry would require numerous cut or specially manufactured shapes.

Dense Castable vs Insulating Castable

The distinction between dense and insulating refractory castables is fundamental to lining design.

Property	Dense Refractory Castable	Insulating Refractory Castable
Primary function	Hot-face lining, mechanical protection and refractory construction	Reduction of heat transfer and lining weight
Density	Relatively high	Low
Mechanical strength	Generally higher	Lower and dependent on grade
Thermal conductivity	Generally higher	Lower
Abrasion resistance	Can be high in suitable formulations	Normally not selected for severe abrasion
Typical position	Working face or mechanically loaded refractory zone	Backup insulation or compatible low-load working lining

A multi-layer refractory lining can combine both technologies. A dense castable may provide the hot-face resistance required by the process, while an insulating castable behind it reduces shell temperature and heat loss.

VITCAS Dense Refractory Castables

Dense refractory castables are designed where strength, dimensional stability and resistance to high-temperature process conditions are more important than minimum thermal conductivity. VITCAS manufactures dense castables at different alumina levels and temperature classifications so the refractory chemistry can be matched more closely to the intended thermal, mechanical and process duty.

VITCAS 1200AR – Abrasion-Resistant Dense Castable

VITCAS 1200AR is a dense refractory castable developed for areas where mechanical erosion and abrasion are major design considerations. The material is rated for temperatures up to 1200°C and contains approximately 50% Al₂O₃.

Its dense structure is intended to provide a hard-wearing refractory surface in installations exposed to moving solids, particulate-laden gases and repeated mechanical wear. Typical applications include kiln cars, ash hoppers, boiler areas, incinerator floors, cyclone separators and dust-handling equipment.

For these duties, refractory selection should consider particle velocity, impact, abrasion pattern and local wear rate in addition to service temperature.

VITCAS 1400STD – General-Purpose Dense Refractory Castable

VITCAS 1400STD is a conventional dense refractory concrete based on firebrick-type refractory aggregates and a hydraulic bonding system. With approximately 45% alumina and a maximum service temperature of 1400°C, it provides a practical monolithic material for general industrial refractory construction.

Applications include boiler arches, kiln-car construction, furnace details and protective refractory sections on suitable floors and walls. A dense castable of this type can simplify the construction of irregular or larger refractory sections where producing the same geometry entirely from shaped bricks would be less practical.

VITCAS 1550STD – High-Alumina Dense Castable

VITCAS 1550STD is a bauxite-based dense castable containing approximately 77.5% Al₂O₃ and rated to 1550°C.

The higher alumina content and dense aggregate structure provide increased refractory capability and mechanical performance for more demanding industrial applications. Typical uses include refractory sections in steel plants, foundries and boiler installations, including doors, lintels and sills exposed to combinations of heat, abrasion, impact and repeated mechanical service.

VITCAS Refractory Castable Grade 1600 – Dense Refractory Concrete

VITCAS Refractory Castable Grade 1600 is a dense monolithic refractory concrete for construction and repair of high-temperature linings operating up to 1600°C. It is intended for areas where the refractory must provide a robust hot-face section rather than primarily thermal insulation.

Typical applications include boiler linings, boiler doors and incinerator linings. The grade is also used in zones exposed to locally elevated temperatures, including gas and oil burner blocks and areas where forced-air combustion can create concentrated thermal loading.

In these applications, lining geometry and burner configuration can generate local hot spots that are more severe than the average furnace temperature. Castable 1600 therefore provides a practical dense refractory solution for shaped burner details, local repairs and monolithic sections where both temperature resistance and mechanical integrity are required.

VITCAS Refractory Castable Grade 1700 – High-Temperature Dense Castable

VITCAS Refractory Castable Grade 1700 is a dense high-temperature refractory concrete rated to 1700°C / 3090°F. It is intended for severe thermal duties where a lower-temperature castable would not provide sufficient refractory capability.

The material is suitable for industrial furnace and foundry applications and is also used in selected small-scale foundry projects. One practical application is lining a metal shell or drum to construct a small crucible furnace for high-temperature metal melting.

Its temperature capability makes it suitable for furnace designs operating in the range required for demanding foundry work, including appropriately designed systems for cast-iron melting. For foundry service, temperature rating should be considered together with molten-metal exposure, slag or flux contact, thermal cycling, lining thickness and mechanical wear.

VITCAS 1800STD – High-Purity Tabular Alumina Castable

VITCAS 1800STD is a very high alumina conventional dense refractory castable based on tabular alumina. The formulation contains approximately 95% Al₂O₃ and provides refractory capability for service temperatures up to approximately 1850°C under compatible conditions.

The high-purity alumina system provides a dense refractory structure suited to severe high-temperature environments where mechanical strength, abrasion performance and refractory chemistry become increasingly important.

Applications include selected installations in the petrochemical and fertiliser industries and non-ferrous metal processing, including copper and brass melting. At these temperatures, process atmosphere, slag chemistry, molten-metal interaction and refractory purity should be evaluated alongside thermal capability.

VITCAS Low Cement Refractory Castables

Low cement castables use substantially less calcium-aluminate cement than conventional refractory concretes. When correctly mixed, placed, cured and dried, the resulting refractory matrix can achieve lower porosity, high mechanical strength and strong resistance to demanding high-temperature and abrasive service.

VITCAS manufactures low cement castables at different alumina levels and with application-specific modifications for precast refractory components, furnace construction, steelmaking and non-ferrous metal processing.

VITCAS 1400LCC – Low Cement Castable for Precast Shapes

VITCAS 1400LCC is a low cement refractory castable rated to 1400°C and containing approximately 48% alumina.

Its controlled low-cement matrix provides low porosity and good mechanical performance and makes the material suitable for both monolithic refractory construction and production of precast refractory shapes. Typical examples include interlocking boiler tiles and perimeter blocks for kiln-car bases.

VITCAS 1400LCC-AL – Non-Wetting Castable for Molten Aluminium

VITCAS 1400LCC-AL is a specialist bauxite-based low cement refractory designed for aluminium processing. It contains approximately 80% Al₂O₃ and is rated to 1400°C.

A key feature of this formulation is the incorporation of a non-wetting additive. This helps reduce penetration of molten aluminium into the refractory matrix and can help limit mechanisms associated with metal penetration and corundum build-up.

Typical applications include aluminium holding furnaces, transfer launders, molten-metal troughs and selected furnace sections exposed directly to molten aluminium. In aluminium service, wetting behaviour, alloy chemistry and molten-metal penetration can be more important specification factors than selecting the castable with the highest available temperature rating.

VITCAS 1600LCC – High-Strength Low Cement Refractory

VITCAS 1600LCC is a low cement refractory castable containing approximately 55% alumina and rated to 1600°C.

The formulation is suitable for both in-situ installation and precast refractory components where increased mechanical performance and refractory temperature capability are required. Applications can include burner quarls, ladle linings, top-ring blocks, upper side walls of aluminium melting furnaces and precast refractory tiles or blocks.

VITCAS 1700LCC – High-Temperature Low Cement Castable

VITCAS 1700LCC extends low cement technology into higher-temperature industrial refractory service. With approximately 63% alumina and a service-temperature capability of approximately 1700°C, it provides a balance between high-temperature performance and the low-porosity, high-strength characteristics associated with low cement refractory systems.

Selection should consider operating atmosphere, mechanical loading, refractory wear, thermal cycling and the chemistry of any process material in contact with the lining.

VITCAS 1700LCC-P – High-Alumina Castable for Severe Metallurgical Service

VITCAS 1700LCC-P is a higher-alumina bauxite-based low cement castable containing approximately 85% Al₂O₃.

The formulation is intended for demanding metallurgical applications where temperature is combined with molten-metal contact, abrasion, mechanical loading and aggressive slag conditions.

Typical applications include hearth blocks in reheat furnaces, steel-ladle linings and throat sections of iron torpedo ladles. These areas expose refractory materials to interacting thermal, chemical and mechanical deterioration mechanisms, so slag chemistry, metal penetration, erosion and operating cycle should all be incorporated into grade selection.

VITCAS 1800LCC – Very High Alumina Low Cement Castable

VITCAS 1800LCC is a very high alumina low cement refractory castable containing approximately 93.5% Al₂O₃ and rated to approximately 1800°C.

Its combination of high alumina content and low cement matrix is intended for severe refractory duties requiring high mechanical strength, chemical stability and resistance to demanding slag or molten-metal environments.

Applications include selected steelmaking and non-ferrous metallurgical installations and production of high-performance precast refractory components.

VITCAS Insulating Refractory Castables

Insulating refractory castables are engineered primarily to reduce heat transfer rather than to provide maximum abrasion or mechanical resistance. Their lower bulk density reduces refractory mass and thermal conductivity, making them useful as backup insulation behind dense hot-face linings or as working linings where operating conditions are compatible with lightweight refractory construction.

VITCAS 1200INS – Lightweight Refractory Insulation

VITCAS 1200INS is a very lightweight insulating castable designed for service temperatures up to approximately 1200°C. The vibration-cast formulation has a published density of approximately 775kg/m³.

The low-density structure provides useful thermal insulation where severe abrasion or heavy mechanical loading is not the primary design requirement. Typical applications include backup insulation between an outer casing and dense refractory lining in boilers, flues, stacks and other thermal-processing equipment.

VITCAS 1250INS – Insulating Castable with Increased Mechanical Stability

VITCAS 1250INS provides a higher-density insulating option for temperatures up to approximately 1250°C.

The formulation provides a balance between insulation and greater mechanical stability compared with very lightweight insulating grades. Typical applications include sub-floor insulation in brick kilns, kiln-car bases and other refractory structures where reduced heat transfer must be combined with moderate mechanical support.

VITCAS 1300INS – Insulating Castable for Furnace and Kiln Linings

VITCAS 1300INS is a lightweight insulating refractory castable rated to 1300°C / 2370°F. Its principal function is to reduce heat transfer through furnace and kiln structures rather than to provide the high mechanical strength expected from a dense hot-face refractory.

The material is suitable for lining furnaces and other high-temperature equipment where an insulating monolithic layer is required. It can also be used as a backup insulation material behind dense refractory castables, allowing the hot-face layer to provide mechanical and process resistance while the insulating layer reduces heat flow toward the casing or outer structure.

This distinction is important in lining design. A lightweight insulating castable can reduce refractory mass and heat loss, but it should not automatically replace a dense castable in zones exposed to significant abrasion, impact or mechanical loading.

VITCAS 1400INS – Higher-Temperature Insulating Castable

VITCAST 1400INS extends insulating castable technology to service temperatures approaching 1400°C.

This allows refractory designers to combine reduced density and lower heat transfer with higher-temperature capability in compatible installations. Dense and insulating castables can also be combined within individual refractory components so that different parts of the same structure are engineered according to their thermal and mechanical function.

VITCAS Refractory Gunning Mixes

VITCAS manufactures refractory formulations designed for pneumatic gunning installation. Gunning enables refractory material to be conveyed through specialist equipment and projected onto the prepared installation surface, allowing rapid build-up of monolithic refractory layers.

This installation method is particularly useful for large refractory surfaces, vertical or irregular furnace geometry, maintenance work and locations where conventional formwork would be difficult or inefficient.

Dense and insulating grades can be formulated for suitable gunning applications. A gunning mix should not automatically be treated as identical to the corresponding vibration-cast material because water control, rebound, nozzle distance, compaction, layer thickness and operator technique influence the density and integrity of the installed refractory.

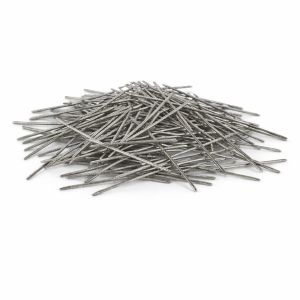

Refractory Castable Reinforcement

VITCAS 25mm (1") stainless steel refractory needles are designed for reinforcement of compatible refractory castables. Distributed metallic fibres can improve toughness and help control crack propagation associated with shrinkage, thermal stress and mechanical loading.

Reinforcement is particularly useful in suitably designed furnace, kiln and boiler sections where castable geometry or operating conditions create additional tensile or thermal stresses. Fibre use should match the refractory formulation, section thickness, operating temperature and lining design rather than being treated as a universal requirement for every castable installation.

Industries & Applications

Depending on formulation, VITCAS refractory castable technologies can be used across a wide range of high-temperature industries:

• Steel & Metallurgy – ladles, reheat furnaces, furnace hearths, torpedo-ladle sections and high-temperature refractory components.
• Foundry & Non-Ferrous Processing – crucible furnaces, aluminium holding furnaces, launders, molten-metal handling systems and furnace repairs.
• Cement, Lime & Minerals – kilns, kiln cars, burner areas and wear-resistant refractory sections.
• Glass & Ceramics – kilns, furnace structures, kiln cars and compatible high-temperature processing equipment.
• Power, Boilers & Incineration – boiler doors, arches, burner blocks, ash hoppers, incinerator linings and related thermal equipment.
• Petrochemical & Process Industries – high-temperature process equipment requiring suitable dense, high-alumina or insulating monolithic refractory systems.

Small Furnaces and Home Foundry Applications

Selected VITCAS refractory castables are also suitable for small-scale furnace and home foundry projects where the product's temperature rating and operating conditions match the intended use.

VITCAS Refractory Castable 1700, for example, can be used to construct the refractory lining of a small crucible furnace capable of operating at temperatures required for demanding metal-melting applications.

The same refractory principles apply to small furnaces as to industrial equipment: lining thickness, insulation, shell temperature, burner configuration, curing and first firing should be considered as part of the complete furnace design.

Castable Selection by Engineering Duty

Refractory duty	Typical VITCAS technology	Important selection criteria
Thermal insulation	VITCAS INS grades	Thermal conductivity, density, cold-face temperature and mechanical load
General dense hot face	VITCAS STD grades and VITCAS dense castables	Temperature, atmosphere, mechanical strength and refractory chemistry
Abrasion and erosion	VITCAS 1200AR and suitable dense grades	Wear mechanism, particulate loading, velocity and temperature
High-strength monolithic lining	VITCAS LCC grades	Porosity, alumina content, abrasion, curing and dry-out
Molten aluminium contact	VITCAS 1400LCC-AL	Wetting, alloy chemistry, metal penetration and operating temperature
Severe steel or iron service	High-alumina VITCAS LCC grades	Slag chemistry, molten metal, abrasion, thermal cycling and lining design
Pneumatic placement	VITCAS gunning mixes	Access, rebound, water addition, substrate and operator technique

Mixing and Water Addition

Water addition is one of the most important installation variables in refractory castable construction. Each formulation has its own designed mixing-water requirement, and insulating, dense and low cement castables can require significantly different quantities.

Adding excessive water may increase installed porosity, reduce strength and alter drying behaviour. Insufficient mixing water can prevent complete placement and compaction.

The specified water quantity for the selected grade should therefore be followed rather than applying a universal site mixing ratio to all refractory castables.

• Use clean water suitable for the specified refractory formulation.
• Measure water rather than estimating the quantity.
• Use suitable mechanical mixing equipment.
• Mix sufficiently to achieve uniform distribution without unnecessary delay.
• Do not retemper material that has started to set unless explicitly permitted by the applicable instructions.

Placement, Compaction and Formwork

Correct placement allows the castable to fill the required geometry while minimising unwanted voids and segregation.

Dense castables may require controlled vibration or other specified compaction methods. Formwork should be sufficiently rigid to maintain the required geometry and withstand the pressure generated during placement.

The installation design should also account for anchors, construction joints, expansion allowance, transitions between materials and interfaces with refractory brickwork or insulation.

Curing and Controlled Dry-Out

Curing and dry-out are critical stages in refractory castable installation. Hydraulic refractory binders require controlled curing to develop the intended material properties, while the water introduced during mixing must subsequently be removed before the lining reaches full operating temperature.

Heating a newly installed castable too rapidly can generate internal steam pressure before moisture has sufficient time to escape. Controlled first heating is therefore part of refractory installation rather than simply an operational start-up procedure.

Dry-out requirements depend on factors including castable formulation, water addition, lining thickness, equipment geometry, ventilation, ambient curing conditions and heating method.

Engineering & Application Considerations

Maximum service temperature is only one parameter in refractory castable selection. A technically appropriate lining matches the formulation to the thermal, chemical and mechanical conditions expected during operation.

• Dense and insulating castables perform fundamentally different functions.
• Mechanical strength and abrasion resistance vary significantly between formulations.
• Thermal-shock performance depends on refractory chemistry, lining design and operating cycle.
• Resistance to slag, molten metals and chemical attack is formulation-specific.
• Atmosphere and process chemistry should be considered for hot-face materials.
• Water addition, mixing, placement and compaction affect installed properties.
• Anchoring and reinforcement should be designed for the relevant lining geometry and temperature.
• Controlled curing and dry-out are essential parts of castable installation.

Why Specify VITCAS Refractory Castables?

• Broad refractory manufacturing capability covering dense, insulating, low cement and gunning technologies.
• Multiple alumina levels and refractory chemistries for different thermal and process environments.
• Specialist formulations for abrasion, molten aluminium, metallurgical service and high-temperature applications.
• Monolithic and precast capability for complex refractory geometry.
• Insulating grades for reducing heat transfer and refractory lining mass.

The breadth of VITCAS castable technology allows refractory systems to be engineered zone by zone. Dense hot-face materials, high-performance low cement sections and lightweight insulation can be combined according to the thermal, chemical and mechanical duty of the furnace, kiln, boiler, foundry installation or process vessel.

Frequently Asked Questions

What is refractory castable?

Refractory castable is a monolithic heat-resistant material manufactured from refractory aggregates, bonding systems and additives. It is normally mixed with a controlled quantity of water and installed to form a high-temperature refractory lining.

What is the difference between dense and insulating castable?

Dense castable is generally selected for hot-face strength, mechanical durability and process resistance. Insulating castable has lower density and thermal conductivity and is primarily used to reduce heat transfer and lining weight.

What is low cement castable?

A low cement castable uses a reduced calcium-aluminate cement content compared with conventional refractory concrete. Correctly installed LCC materials can provide lower porosity, high strength and strong performance in demanding high-temperature applications.

Which refractory castable is used with molten aluminium?

VITCAS 1400LCC-AL is a specialist low cement formulation containing a non-wetting additive for compatible molten-aluminium applications such as holding furnaces and launders.

Can refractory castable be used as insulation?

Insulating refractory castables are specifically designed for this purpose. Their lower density and thermal conductivity allow them to reduce heat flow through furnace, kiln and boiler linings.

Can insulating castable be used instead of dense castable?

Only where its mechanical and process properties are appropriate. Lightweight insulating materials generally do not provide the same abrasion resistance or mechanical strength as dense hot-face castables.

What is a refractory gunning mix?

A refractory gunning mix is formulated for pneumatic installation. Material is projected onto the prepared surface using specialist equipment, making the method useful for large areas, maintenance work and complex refractory geometry.

Why are stainless steel needles added to refractory castable?

Suitable stainless steel reinforcement can increase toughness and help distribute stresses associated with shrinkage, thermal cycling and mechanical loading. Fibre selection and dosage should match the refractory formulation and lining design.

How much water should be added to refractory castable?

Water addition depends on the specific castable formulation. Dense, insulating and low cement materials can require very different quantities, so the specified mixing ratio for the selected product should be followed rather than using a universal proportion.

Why is excessive mixing water undesirable?

Excessive water can increase porosity and reduce the mechanical properties of the installed refractory. It can also increase the amount of moisture that must be safely removed during dry-out.

Does refractory castable need to cure before firing?

Yes. Refractory castables require the appropriate curing period before controlled dry-out and heating. The exact procedure depends on formulation, lining thickness and installation conditions.

Can refractory castable be used for furnace repairs?

Yes. Suitable refractory castables are widely used for local furnace, kiln, boiler and incinerator repairs as well as complete monolithic lining sections. The repair material should be compatible with the existing refractory and actual operating conditions.

Can refractory castable be used for a home foundry?

Selected high-temperature castables can be used for suitably designed small crucible furnaces and home foundry projects. Furnace shell construction, insulation, burner configuration, lining thickness, curing and safe first firing remain important parts of the complete design.

How should a refractory castable be selected?

Selection should consider service temperature, required density, thermal conductivity, mechanical loading, abrasion, atmosphere, slag or molten-metal exposure, alumina content, lining thickness, installation method, reinforcement, curing and dry-out requirements. The best refractory grade is the one matched to the actual duty of the lining zone rather than simply the material with the highest temperature rating.
