Zircon Paint Coating-Dry Powder 1750°C
- SKU
- ZIRCON-PAINT-DRY
- Size
- 5 kg
- Material
- Zircon (ZrSiO₄)
Benefits of Shopping with VITCAS
Direct from Manufacturer
?
Fast shipping – dispatch even within 24 hours
?
UK warehouse dispatch – Worldwide shipping
?
Secure payments – Visa, Mastercard, AmEx, PayPal, Apple Pay & Google Pay
?
14-day returns guarantee
?
Description / Zircon Paint Coating-Dry Powder 1750°C

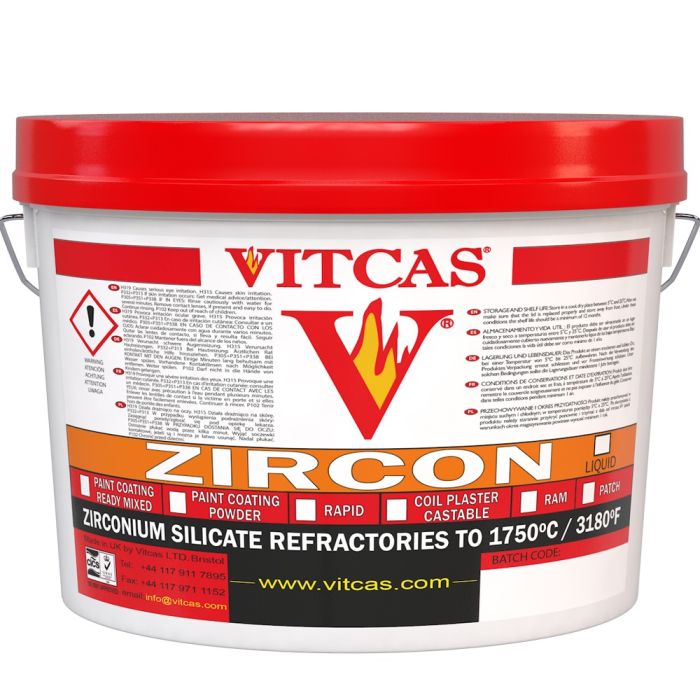

VITCAS Zircon Refractory Paint Coating 1750°C – Dry Powder for High Temperature Linings
VITCAS Zircon Refractory Paint Coating is a high-performance, zircon-based protective refractory coating supplied as a dry powder for mixing with water. Rated to 1750°C (3180°F), it provides excellent alkali resistance and non-wetting properties, making it particularly suitable for refractory linings used in the aluminium industry.
Designed for application to compatible refractory surfaces, including warm refractory linings where specified, the coating helps limit molten aluminium adhesion and reduce the formation of corundum deposits. Applied by brush or spray, it forms a protective surface layer that can help reduce metal penetration and associated refractory wear in demanding industrial applications.
Key Features and Characteristics
- High Temperature Resistance: Rated to 1750°C (3180°F) for suitable high-temperature industrial applications.
- Zircon-Based Composition: Refractory coating formulated for thermal stability and resistance to compatible industrial process conditions.
- Alkali Resistance: Provides protection against alkaline attack on compatible refractory surfaces.
- Non-Wetting Properties: Helps reduce adhesion of molten aluminium alloys to the refractory lining.
- Corundum Reduction: Helps limit the formation and accumulation of corundum deposits associated with molten aluminium contact.
- Dry Powder Form: Mixed with water before application, allowing preparation of the required quantity.
- Flexible Application: Suitable for brush or spray application using appropriate equipment.
Typical Industrial Applications
- Aluminium Industry: Protective coating for compatible refractory linings in aluminium melting furnaces, holding furnaces, ladles and launders handling molten aluminium alloys.
- Refractory Bricks and Monolithic Linings: Surface protection for suitable alumino-silicate refractory bricks and monolithic linings exposed to high temperatures and alkaline conditions.
- Molten Metal Processing: Non-wetting surface treatment for compatible refractory components where molten aluminium adhesion and penetration are concerns.
- Glass Industry: Specialist protective coating applications in selected glass-processing equipment, subject to compatibility with the glass composition and operating conditions.
- Metal Slag Exposure: Protective coating for suitable refractory surfaces exposed to compatible slags and high-temperature process materials.
- Ceramic Fibre Linings: Surface coating of compatible ceramic fibre insulation materials where permitted by the product and insulation system specifications.
Mixing and Application Instructions
- Surface Preparation: Ensure the refractory surface is sound and free from loose material, dust and contamination.
- Mixing Ratio: Mix the dry powder with approximately 300 ml of clean water per kilogram of powder.
- Mix Thoroughly: Use a mixing paddle to produce a smooth, uniform coating consistency.
- Application: Apply Zircon Paint Coating evenly using a brush or spray equipment.
- Surface Temperature: Application to warm refractory surfaces is recommended.
- Drying and Heating: Allow the coating to dry appropriately and follow the recommended heating procedure before returning the refractory installation to service.
Important: Zircon Paint Coating is a protective surface treatment and is not a substitute for structural refractory castables, bricks or linings. Chemical compatibility and coating performance depend on the substrate, molten material, temperature and operating conditions. The 1750°C rating applies to the refractory coating material, not necessarily the complete lining system.
Product Specifications
| Product Category | Refractory Materials |
|---|---|
| Product Group | Paints / Coatings |
| Size | 5 kg |
| Material | Zircon (ZrSiO₄) |
| Product Form | Dry Mix |
| Consistency | Powder |
| Bonding Type | Hydraulic Bond |
| Temperature | 1750 °C / 3180 °F |
| Coverage | ≈ 3 m² / 1 kg |
| Mix with Water | Yes |
| Water Addition | 300 ml / 1 kg |
| HS Tariff Code | 3816009000 |
