FR - Fireplace Render
- SKU
- VITCAS-FR
- Colour
- Light Grey
- Material
- Cementitious Refractory
Benefits of Shopping with VITCAS
Direct from Manufacturer
?
Fast shipping – dispatch even within 24 hours
?
UK warehouse dispatch – Worldwide shipping
?
Secure payments – Visa, Mastercard, AmEx, PayPal, Apple Pay & Google Pay
?
14-day returns guarantee
?
Description / FR - Fireplace Render

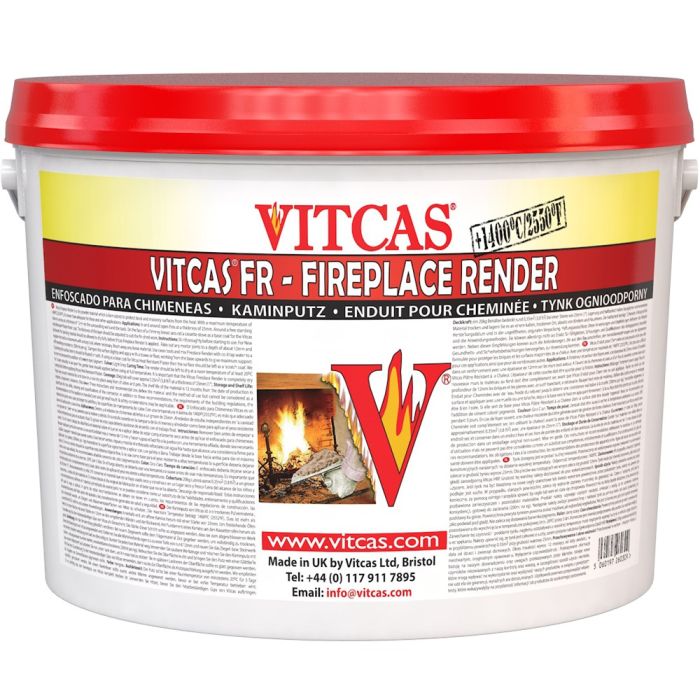

VITCAS FR Fireplace Render – Heat Resistant Base Coat Render 1400°C
VITCAS FR Fireplace Render is a dry-mix, heat-resistant render formulated for brick, stone, concrete and blockwork surfaces exposed to elevated temperatures. Rated to 1400°C (2552°F), it is designed for rendering fireplace recesses, chimney breasts, stove surrounds and masonry around heating appliances. It can be used as a heat-resistant base coat beneath VITCAS HRP Heat Resistant Plaster or finished directly where a smooth rendered surface is required.
VITCAS FR is supplied as a fully blended powder with a maximum aggregate size of 5 mm. It requires only clean water, added at approximately 200 ml per kilogram of dry render, to achieve a stiff, workable trowelling consistency.
Key Features
- Temperature resistance: Rated to 1400°C (2552°F).
- Heat-resistant masonry render: Suitable for brickwork, stone, concrete and compatible blockwork.
- Dry-mix formulation: Requires only clean water before application.
- Maximum aggregate size: 5 mm.
- Mixing ratio: Approximately 200 ml of water per kilogram of dry powder.
- Base coat compatibility: Provides a suitable substrate for VITCAS HRP Heat Resistant Plaster.
Typical Applications and Recommended Thickness
- Wood-burning and freestanding stoves: Apply a minimum 12 mm layer to suitable masonry walls and fireplace recesses surrounding the appliance.
- Open fireplaces and log baskets: A 25 mm render thickness is recommended, applied in one or more layers as required.
- Chimney breasts and inset stoves: Apply a minimum 12 mm base coat where a subsequent 3–6 mm finish of VITCAS Heat Resistant Plaster is specified.
- Boilers and heating appliances: Apply a minimum 12 mm layer to suitable heat-exposed masonry surfaces, subject to the installation requirements.
- Fireplace refurbishment: Re-rendering existing brick, stone and blockwork surfaces before applying a compatible heat-resistant finish.
Surface Preparation and Mixing
- New masonry: Allow recently constructed brickwork or other masonry substrates to dry before rendering.
- Existing surfaces: Remove loose material, dust, grease and deteriorated mortar. Rake out mortar joints to approximately 12 mm and roughen smooth masonry where necessary to provide a mechanical key.
- Surface dampening: Lightly dampen absorbent masonry before application to reduce excessive moisture loss from the render.
- Mixing: Add approximately 200 ml of clean, cold water per kilogram of VITCAS FR Fireplace Render. Mix thoroughly using clean tools until a stiff, uniform trowelling consistency is achieved.
Application Instructions
- Apply VITCAS FR Fireplace Render using a trowel or float, working from the bottom upwards.
- Build up the render to the recommended thickness for the intended fireplace or stove installation.
- Where multiple coats are required, allow each layer to firm up sufficiently before applying the next.
- For a smooth rendered finish, float the surface evenly. Do not add cement dyes or pigments to the render mixture.
- Where VITCAS HRP Heat Resistant Plaster will be applied, leave the surface roughened as a scratch coat to provide a suitable mechanical key.
Drying and Initial Heating
Protect newly applied render with a plastic sheet overnight to limit rapid moisture loss. Allow approximately 48 hours of natural drying, with additional time for thicker applications or unfavourable ambient conditions.
Before applying a finishing plaster or returning the fireplace to normal operation, ensure that the render is thoroughly dry. Where appropriate, introduce gentle, controlled heat to assist removal of retained moisture. Avoid sudden exposure to high temperatures, which may cause cracking or spalling.
For a plastered finish, apply VITCAS HRP Heat Resistant Plaster only after the render has completed the required drying and initial heating process.
Important Application Notes
- VITCAS FR is a heat-resistant base coat render, not a finishing plaster or insulation board.
- The specified render thickness must be selected according to the application and substrate conditions.
- Do not expose freshly applied render to intense heat before adequate drying.
- The 1400°C rating applies to the render material and does not determine the permissible operating temperature of the complete fireplace or stove installation.
Storage and Quantity Estimation
Store unused VITCAS FR Fireplace Render in its original packaging in a cool, dry location, protected from moisture.
To estimate the quantity required for your fireplace or stove installation, use the VITCAS Quantity Calculator.
Product Specifications
| Product Category | Heat-Resistant Materials |
|---|---|
| Product Group | Render & Plaster |
| Material | Cementitious Refractory |
| Product Form | Dry Mix |
| Consistency | Dry |
| Bonding Type | Hydraulic Bond |
| Temperature | 1400 °C / 2550 °F |
| Colour | Light Grey |
| Application Method | Trowelling |
| Application / Joint Thickness | ≥12 mm |
| Coverage | ≈ 0.4 m² (4.3 ft²) / 20 kg @ 25 mm (1″) |
| Mix with Water | Yes |
| Water Addition | 200 ml / 1 kg |
| Drying Time | 72h / +20°C (+68°F) |
| Indoor Use | Yes |
| Outdoor Use | Yes |
| Manufacturer | VITCAS |
| HS Tariff Code | 3816009000 |
