Outdoor Pizza Oven Arch for Door

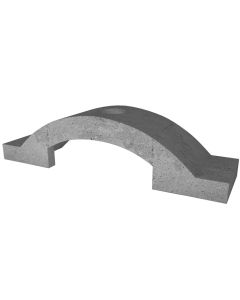

VITCAS Outdoor Pizza Oven Door Arch – Precast Refractory Concrete

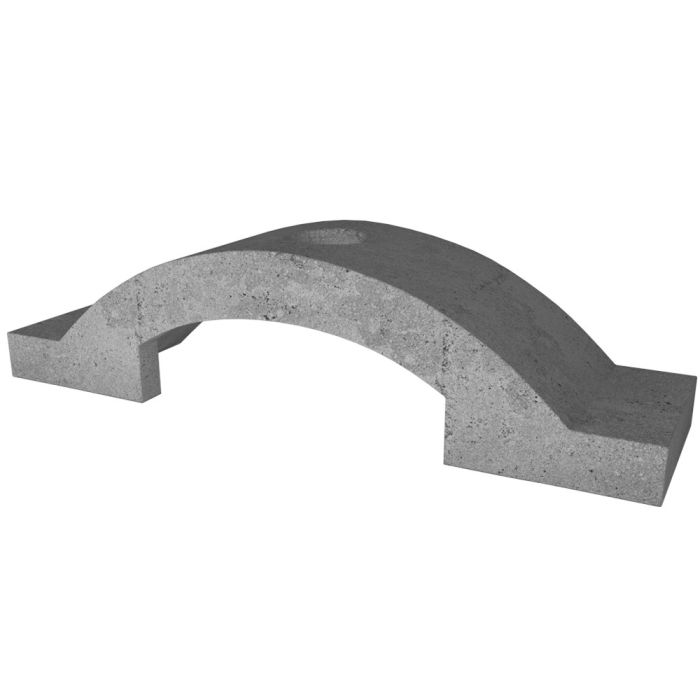

VITCAS Outdoor Pizza Oven Door Arch Section is a precast refractory concrete component designed to form the front entrance of a traditional wood-fired pizza or bread oven. Manufactured from heat-resistant concrete, it provides a shaped entrance section for tunnel-style ovens constructed using VITCAS firebricks and compatible refractory materials.

The arch incorporates a 100 mm diameter opening for a chimney flue and is designed to accommodate compatible VITCAS cast iron oven doors. Its ends align with 64 mm thick firebricks, allowing the precast section to integrate with the surrounding refractory brickwork.

Key Features and Benefits

• Heat-Resistant Concrete: Precast refractory material designed for wood-fired oven construction.
• Purpose-Built Door Arch: Forms the front entrance of a tunnel-shaped pizza or bread oven.
• Chimney Connection: Incorporates a 100 mm diameter opening for a compatible flue system.
• Cast Iron Door Compatibility: Designed to fit suitable VITCAS pizza and bread oven doors.
• Firebrick Integration: End sections correspond to the thickness of VITCAS 64 mm firebricks.
• Precast Construction: Provides a consistent arch profile without individually shaping the entrance from firebricks.

Applications

• Wood-Fired Pizza Ovens: Constructing the entrance and flue connection of traditional outdoor pizza ovens.
• Wood-Fired Bread Ovens: Forming the doorway of refractory ovens used for bread baking.
• Tunnel-Shaped Ovens: Front entrance section for compatible ovens assembled from VITCAS precast arches and firebricks.
• DIY Oven Construction: Suitable for custom-built outdoor ovens incorporating compatible refractory components.

Dimensions and Compatibility

• Arch Radius: 250 mm.
• Chimney Opening: 100 mm diameter.

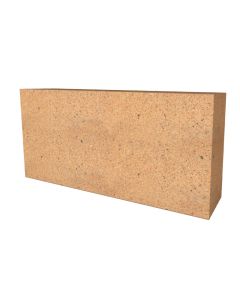

• Compatible Firebricks: VITCAS 64 mm thick firebricks.
• Door Compatibility: Suitable VITCAS cast iron pizza and bread oven doors.

Construction Considerations

The door arch should be installed on suitably supported refractory brickwork as part of a complete oven construction. Check the entrance geometry, chimney position and door dimensions before assembly, and use compatible VITCAS refractory jointing materials. The completed oven should be appropriately insulated, weather-protected and fully cured before firing.

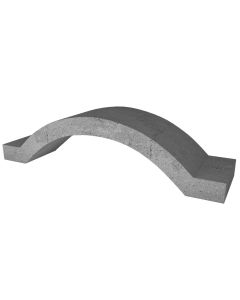

Please note: This product is the front door arch section, not the standard arch used to extend the oven chamber. Confirm component dimensions and compatibility before construction. The chimney, door, firebricks and insulation materials are supplied separately unless included in a specified kit.
